Over 100 Years Of Combined Horse Involvement and Construction and Equine Construction Experience
Any Style, Any Size, From Opulent To Practical, We Build Anything and Everything Equestrian.

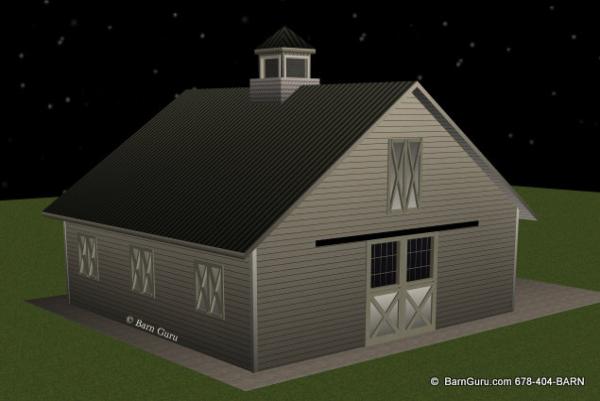

Four Stall Horse Barn - Builder In North Ga - Design Plans

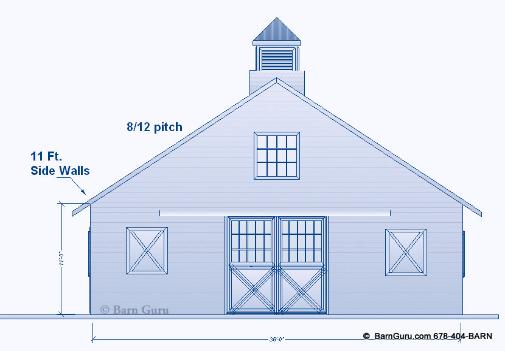

Horse Barn Plans
This side faces house
Rear Elevation
This side faces the road
Wash Area
WASH
4 stall horse barn floor plan - Barn Builder in Ga
Optional Front Stall Windows
Optional Gable Window
Optional Glass In Aisle Doors
Optional Saloon Style Stall
Windows
Optional Dutch Bottom For Wash
Optional Faux Loft Doors
10 ft
Buy The Basic Plans. Floor Plan, Footing layout, Footing Details and Elevations for
$350.00.

If you are planning to build the barn yourself or if your builder is unfamiliar with horse
barn construction you may need framing details and a materials list . Most experienced
builders would only need the above floor plan and elevations and could give you
several framing option. Our framing details would be the way we would frame the barn
using 6" x 6" post with double rafters that sandwich post 12' o.c., with 4" x 6" purlins
24" o.c., or you can choose typical roof framing with rafters 16" o.c. Either framing
techniques will show detailed site built king trusses 12' o.c. You can always order the
framing details and a material list later if you need them.

Add $300.00 for framing details if you need them.

Add $300.00 if you need a material list with Georgia material pricing.

Add $200.00 to Modify the plan
Buy The Plans
